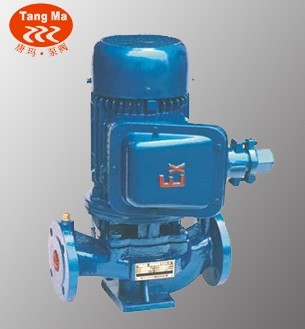

YG型立式管道离心油泵是我公司研发出优秀水力模型，采用IS离心泵之性能参数，在一般立式泵的基础上进行巧妙组合设计而成，同时根据使用温度、介质等不同在ISG型基础上派生出适用热水、高温、腐蚀性化工泵、油泵。该系列产品具有高效节能、噪音低、性能可靠等优点，符合最新国家机械部JB/T53058-93的标准要求，产品按国际ISO2858标准设计制造，93年通过国家机械工业部管道泵产品统检合格。
YG型立式管道离心油泵产品特点
1、泵为立工结构，进出口口径相同，且位于同一中心线上，可象阀门一样安装于管路之中，外形紧凑美观，占地面积小，建筑投入低，如加上防护罩则可置于户外使用；
2、叶轮直接安装在电机的加长轴上，轴向尺寸短，结构紧凑，泵与电机轴承配置合理，能有效地平衡泵运转产生的径向和轴向负荷，从而保证了泵的运行平稳，振动噪声很低；
3、轴封采用机械密封或机械密封组合，采用进口钛合金密封环、中型耐高温机械密封和采用硬质合金材质，耐磨密封，能有效地增长机械密封的使用寿命；
4、安装检修方便，无需拆动管路系统，只要卸下泵联体座螺母即可抽出全部转子部件。
YG型立式管道离心油泵工作条件
1、吸入压力≤1.0MPa，或泵系统最高工作压力≤1.6MPa，即泵吸入口压力+泵扬程≤1.6MPa，泵静压试验压力为2.5MPa，订货时请注明系统工作压力。泵系统工作压力大于1.6MPa时应在订货时另行提出，以便在制造时泵的过流部分和联接部分采用铸钢材料。
2、环境温度＜40℃，相对湿度＜95%。
3、所输送介质中固体颗粒体积含量不超过单位体积的0.1%，粒度＞0.2mm。
注：如使用介质为带有细小颗粒，请在订货时说明，以便厂家采用耐磨式机械密封。
YG型立式管道离心油泵型号意义
YG型立式管道离心油泵主要用途
1、YG型立式管道油泵适用于输送不含固体颗粒的介质，如汽油、煤油、柴油等石油产品，温度为-20℃∽+120℃；
2、所输送油类介质温度T>120℃或含有微量颗粒时，可选择高温结构或化工泵结构。

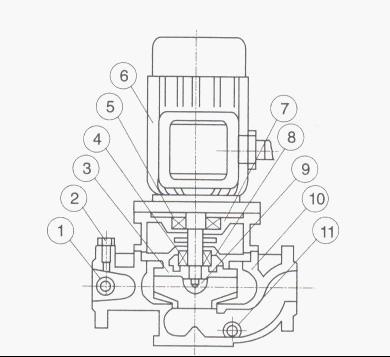

YG型立式管道离心油泵结构图
.jpg)
1、取压阀 2、排气阀 3、叶轮 4、机械密封 5、轴承
6、电机 7、联体座 8、泵盖 9、叶轮螺母 10、泵体 11、放水阀
YG型立式管道离心油泵性能参数
|
型号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
|
(m3/h)
|
(L/s)
|
|
15-80
|
1.1
1.5
2.0
|
0.30
0.42
0.55
|
8.5
8.0
7.0
|
26
34
34
|
2800
|
0.18
|
|
20-110
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
16.0
15.0
13.5
|
25
34
35
|
2800
|
0.37
|
|
20-125
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
21.0
20.0
18.6
|
28
35
34
|
2800
|
0.75
|
|
20-160
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
33
32
30
|
19
25
23
|
2900
|
1.5
|
|
25-110
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
16.0
15.0
13.5
|
34
42
41
|
2900
|
0.55
|
|
25-125
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
20.6
20.0
18.0
|
28
36
35
|
2900
|
0.75
|
|
25-125A
|
2.5
3.6
4.6
|
0.69
1.00
1.28
|
17.0
16.0
14.4
|
29
35
31
|
2900
|
0.75
|
|
25-160
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
33
32
30
|
24
32
33
|
2900
|
1.5
|
|
25-160A
|
2.6
3.7
4.9
|
0.12
1.03
1.36
|
29
28
26
|
27
31
29
|
2900
|
1.1
|
|
32-100
|
3.5
4.5
5.3
|
0.97
1.24
1.47
|
14.5
12.5
11
|
35
40
38
|
2900
|
0.55
|
|
30-125
|
3.5
5.0
6.5
|
0.97
1.39
1.80
|
22
20
18
|
40
44
42
|
2900
|
0.75
|
|
32-125A
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
17.6
16.0
14.4
|
39
43
40
|
2900
|
0.55
|
|
32-160
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33
32
30
|
40
44
42
|
2900
|
1.5
|
|
32-160A
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
27
25
21
|
31
34
32
|
2900
|
1.1
|
|
32-200
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
50.5
50.0
48.0
|
28
32
30
|
2900
|
3
|
|
32-200A
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
44.6
44
42.7
|
34
40
42
|
2900
|
2.2
|
|
32-160(1)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33.2
32
30.2
|
34
40
42
|
2900
|
2.2
|
|
32-200(1)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
50.5
50.0
48.0
|
26
33
35
|
2900
|
4
|
|
40-100
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.55
|
|
40-100A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10.0
9.0
|
48
52
50
|
2900
|
0.37
|
|
40-125
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
41
46
43
|
2900
|
1.1
|
|
40-125A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
40
45
41
|
2900
|
0.75
|
|
40-160
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
33
32
30
|
35
40
40
|
2900
|
2.2
|
|
40-160A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
29
28
26.3
|
34
39
39
|
2900
|
1.5
|
|
40-160B
|
3.8
5.5
7.2
|
1.06
1.53
2.0
|
25.5
24
22.5
|
34
38
37
|
2900
|
1.1
|
|
40-200
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
26
33
32
|
2900
|
4
|
|
40-200A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
45
44
42
|
26
31
32
|
2900
|
3
|
|
40-200B
|
3.7
5.3
7.0
|
1.03
1.47
1.94
|
38
36
34.5
|
25
29
27
|
2900
|
2.2
|
|
40-250
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
24
28
28
|
2900
|
7.5
|
|
40-250A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
24
28
27
|
2900
|
5.5
|
|
40-250B
|
3.8
5.5
7.0
|
1.06
1.53
1.94
|
61.5
60
56
|
23
27
26
|
2900
|
4
|
|
40-100(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.2
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
|
40-100(1)A
|
8.0
11.0
14.5
|
2.22
3.05
4.03
|
10.6
10.0
9.0
|
57
60
59
|
2900
|
0.75
|
|
40-125(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.2
20.0
17.8
|
49
58
57
|
2900
|
1.5
|
|
40-125(1)A
|
8.0
11.0
14.5
|
2.22
3.05
4.03
|
17.0
16.0
14.0
|
53
57
55
|
2900
|
1.1
|
|
40-160(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
|
40-160(1)A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
|
40-160(1)B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
|
40-200(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
51.2
50
48
|
38
46
46
|
2900
|
5.5
|
|
40-200(1)A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.0
44
42
|
37
45
45
|
2900
|
4
|
|
40-200(1)B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
|
40-250(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
81.2
80
77.5
|
31
38
40
|
2900
|
11
|
|
40-250(1)A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.0
70
68
|
38
|
2900
|
7.5
|
|
40-250(1)B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
5.5
|
|
40-250(1)C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
|
2900
|
5.5
|
|
50-100
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
|
50-100A
|
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
60
|
2900
|
0.75
|
|
50-125
|
8.8
12.5
16.3
|
2.44
3.74
4.53
|
21.5
20
17.8
|
49
58
57
|
2900
|
1.5
|
|
50-125A
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
|
2900
|
1.1
|
|
50-160
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
|
50-160A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
|
50-160B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
|
50-200
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900
|
5.5
|
|
50-200A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900
|
4
|
|
50-200B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
|
50-250
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900
|
11
|
|
50-250A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
38
|
2900
|
75
|
|
50-250B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
5.5
|
|
50-250C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
504
|
36
|
2900
|
5.5
|
|
50-100(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
|
50-100(1)A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
|
50-125(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
|
50-125(1)A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
13.6
|
58
66
65
|
2900
|
2.2
|
|
50-160(1)
|
17.5
25
32.5
|
4.68
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
|
50-160(1)A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
3
|
|
50-160(1)B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
28
|
2900
|
2.2
|
|
50-200(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
|
50-200(1)A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
5.5
|
|
50-200(1)B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
4
|
|
50-250(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
|
50-250(1)A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
|
50-250(1)B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
7.5
|
|
50-315(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
128
125
122
|
30
40
44
|
2900
|
30
|
|
50-315(1)A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
30
40
44
|
2900
|
22
|
|
50-315(1)B
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
|
50-315(1)C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
|
65-100
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
|
65-100A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
|
65-125
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
|
65-125A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
14.4
|
58
66
65
|
2900
|
2.2
|
|
65-160
|
17.5
25
32.5
|
4.86
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
|
65-160A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
3
|
|
65-160B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
|
2900
|
2.2
|
|
65-200
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
|
65-200A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
5.5
|
|
65-200B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
4
|
|
65-250
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
|
65-250A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
|
65-250B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
7.5
|
|
65-315
|
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
32
40
44
|
2900
|
30
|
|
65-315A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
32
40
44
|
2900
|
22
|
|
65-315B
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
|
65-315C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
|
65-100(1)
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
|
65-100(1)A
|
31.3
44.7
58
|
8.7
12.4
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
|
65-125(1)
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
|
65-125(1)A
|
31.5
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
|
65-160(1)
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
|
65-160(1)A
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
5.5
|
|
65-160(1)B
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
4
|
|
65-200(1)
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
|
65-200(1)A
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
|
65-200(1)B
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
|
65-250(1)
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
|
65-250(1)A
|
32.5
43.3
46.7
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
|
65-250(1)B
|
30
56
61
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
|
65-315(1)
|
35
50
65
|
9.72
13.9
18.1
|
128
125
121
|
44
54
57
|
2900
|
37
|
|
65-315(1)A
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
106.4
|
43
54
57
|
2900
|
30
|
|
65-315(1)B
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
|
65-315(1)C
|
29
41
53.6
|
8.1
11.4
14.9
|
87
85
83
|
51
|
2900
|
22
|
|
80-100
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
|
80-100A
|
31.3
44.7
58
|
8.7
12.5
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
|
80-125
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
|
80-125A
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
|
80-160
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
|
80-160A
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
5.5
|
|
80-160B
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
4
|
|
80-200
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
|
80-200A
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
|
80-200B
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
|
80-250
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
|
80-250A
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
|
80-250B
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
|
80-315
|
35
50
65
|
9.72
13.9
18.1
|
128
125
122
|
43
54
57
|
2900
|
37
|
|
80-315A
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
107.4
|
43
54
57
|
2900
|
30
|
|
80-315B
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
|
80-315C
|
29
41
53.6
|
8.1
11.4
14.9
|
98
85
83
|
51
|
2900
|
22
|
|
80-350
|
35
50
65
|
9.72
13.9
18.1
|
153.6
150
142
|
55
66
67
|
2900
|
55
|
|
80-350A
|
31
44.5
58
|
8.6
12.4
16.1
|
145.6
142
134.8
|
65
|
2900
|
45
|
|
80-350B
|
29
41
53.6
|
8.1
11.4
14.9
|
138.6
135
127.8
|
63
|
2900
|
37
|
|
80-100(1)
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
|
80-100(1)A
|
62.6
89
116
|
17.4
24.7
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
|
80-125(1)
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
|
80-125(1)A
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
65
|
2900
|
7.5
|
|
80-160(1)
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
|
80-160(1)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
|
80-160(1)B
|
60.6
86.6
112.6
|
16.8
24.1
31.3
|
26
24
18
|
72
|
2900
|
7.5
|
|
80-200(1)
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
|
80-200(1)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
67
73
72
|
2900
|
18.5
|
|
80-200(1)B
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
|
80-250(1)
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
|
80-250(1)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
|
80-250(1)B
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
22
|
|
80-315(1)
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
|
80-315（1）A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
55
66
67
|
2900
|
55
|
|
80-315（1）B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
|
80-315（1）C
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
|
100-100
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
|
100-100A
|
62.6
89
116
|
17.4
47
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
|
100-125
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
|
100-125A
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
63
|
2900
|
7.5
|
|
100-160
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
|
100-160A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
|
100-160B
|
60.6
86.6
112.5
|
16.8
24.1
31.3
|
27
24
18
|
72
|
2900
|
7.5
|
|
100-200
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
|
100-200A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
64
73
72
|
2900
|
18.5
|
|
100-200B
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
|
100-250
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
|
100-250A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
|
100-250B
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
22
|
|
100-315
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
|
100-315A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
65
66
67
|
2900
|
55
|
|
100-315B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
|
100-315C
|
58
82
107
|
16.1
27.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
|
100-350
|
60
100
120
|
16.7
27.8
33.3
|
153.6
150
142
|
72
57
74
|
2900
|
90
|
|
100-350A
|
61
87
113
|
16.9
24.2
31.4
|
145.6
142
134
|
75
|
2900
|
75
|
|
100-350B
|
58
82
107
|
16.1
22.8
29.7
|
138.6
135
127
|
75
|
2900
|
55
|
|
100-100(1)
|
96
160
192
|
26.7
44.4
53.3
|
14
12.5
10
|
64
73
70
|
2900
|
11
|
|
100-125(1)
|
96
160
192
|
26.7
44.4
53.3
|
24
20
14
|
62
74
69
|
2900
|
15
|
|
100-125(1)A
|
84
140
168
|
23.3
39
46.7
|
20
17
12
|
64
72
68
|
2900
|
11
|
|
100-160(1)
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
69
79
75
|
2900
|
22
|
|
100-160(1)A
|
84
140
168
|
23.3
39
46.7
|
32
28
23.5
|
66
76
72
|
2900
|
18.5
|
|
100-200(1)
|
96
160
192
|
26.7
44.4
53.3
|
53
50
45
|
69
79
78
|
2900
|
37
|
|
100-200(1)A
|
84
140
168
|
23.3
39
46.7
|
48
45
40
|
64
74
73
|
2900
|
30
|
|
100-200(1)B
|
60
100
120
|
16.7
27.8
33.3
|
43
40
36
|
72
|
2900
|
22
|
|
100-250(1)
|
96
160
192
|
26.7
44.4
53.3
|
83
80
72
|
65
77
74
|
2900
|
55
|
|
100-250(1)A
|
84
140
168
|
23.3
39
46.7
|
75
72
65
|
60
72
69
|
2900
|
45
|
|
100-250(1)B
|
60
100
120
|
16.7
27.8
33.3
|
68
65
58
|
70
|
2900
|
37
|
|
125-100
|
96
160
192
|
26.7
44.4
53.3
|
13
12.5
12
|
82
|
2900
|
11
|
|
125-100A
|
86
143
172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
77
|
2900
|
7.5
|
|
125-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
9.6
|
80
|
2900
|
15
|
|
125-125A
|
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
|
2900
|
11
|
|
125-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
78
|
2900
|
22
|
|
125-160A
|
90
150
180
|
25
41.7
50
|
31.5
28
24.5
|
76
|
2900
|
18.5
|
|
125-160B
|
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
73
|
2900
|
15
|
|
125-200
|
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
77
|
2900
|
37
|
|
125-200A
|
90
150
180
|
25
41.7
50
|
48.4
44
40.5
|
76
|
2900
|
30
|
|
125-200B
|
83
138
166
|
31.7
38.3
46.1
|
41.3
37.5
34.5
|
75
|
2900
|
22
|
|
125-250
|
96
160
192
|
26.7
4.4
53.3
|
87
80
73
|
75
|
2900
|
55
|
|
125-250A
|
90
150
180
|
25
41.7
50
|
84
76
70
|
74
|
2900
|
45
|
|
125-250B
|
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
73
|
2900
|
37
|
|
125-315
|
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
70
|
2900
|
90
|
|
125-315A
|
90
150
180
|
25
41.7
50
|
117
110
104.6
|
70
|
2900
|
75
|
|
125-315B
|
86
143
172
|
23.9
39.7
47.8
|
106.4
100
95.2
|
69
|
2900
|
75
|
|
125-315C
|
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
|
2900
|
55
|
|
150-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
66
76
76
|
2900
|
15
|
|
150-125A
|
90
150
180
|
25
41.7
50
|
18
16
13.6
|
77
|
2900
|
11
|
|
150-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
75
|
2900
|
22
|
|
150-160A
|
90
150
180
|
25
41.7
50
|
32
28
23.5
|
76
|
2900
|
18.5
|
|
150-160B
|
84
140
168
|
23.3
39
46.7
|
27
24
21
|
73
|
2900
|
15
|
|
150-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
|
150-200A
|
125
176
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
|
150-200B
|
110
160
207
|
31
44.4
57.6
|
9.2
8
6.8
|
75
|
1450
|
7.5
|
|
150-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
|
150-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
|
150-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
|
150-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
73
|
1450
|
30
|
|
150-315A
|
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
|
150-315B
|
121
173
225
|
33.5
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
|
150-350
|
96
160
192
|
26.7
44.4
53.3
|
153.6
150
142.8
|
80
|
2900
|
110
|
|
150-350A
|
90
150
180
|
25
41.7
50
|
145.6
142
134.8
|
70
|
2900
|
90
|
|
150-350B
|
84
140
168
|
23.3
39
46.7
|
138.6
135
127.8
|
65
76
74
|
2900
|
75
|
|
150-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
|
150-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
|
150-400B
|
122
174
226.5
|
33.9
48.3
62.9
|
40
38
33
|
73
|
1450
|
30
|
|
150-400C
|
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
|
150-250（1）
|
120
200
240
|
33.3
55.6
66.7
|
87
80
72
|
65
76
74
|
2900
|
75
|
|
150-250（1）A
|
112
187
224
|
31.1
51.9
62.2
|
76
70
63
|
64
75
73
|
2900
|
55
|
|
150-250（1）B
|
104
173
208
|
28.9
48.1
57.8
|
65
60
54
|
63
74
72
|
2900
|
45
|
|
150-315（1）
|
120
200
240
|
33.3
55.6
66.7
|
133
125
120
|
58
73
75
|
2900
|
110
|
|
150-315（10）A
|
112
187
224
|
31.1
51.9
62.2
|
116
110
105
|
57
72
74
|
2900
|
90
|
|
150-315（1）B
|
104
173
208
|
28.9
48.1
57.8
|
100
95
91
|
55
70
72
|
2900
|
75
|
|
200-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
|
200-200A
|
125
179
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
|
200-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
|
200-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
|
200-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
|
200-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
78
|
1450
|
30
|
|
200-315A
|
131
189
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
|
200-315B
|
121
173
225
|
33.6
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
|
200-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
|
200-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
|
200-400B
|
122
174
226.5
|
33.9
48.6
62.9
|
40
38
33
|
73
|
1450
|
30
|
|
200-400C
|
112
160
208
|
31.3
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
|
200-200（1）
|
280
400
520
|
77.8
111.1
114
|
13.4
12.5
10.5
|
70
80
79
|
1450
|
22
|
|
200-200（1）A
|
250
358
465
|
69.4
99.4
129.2
|
10.7
10
8.5
|
68
78
77
|
1450
|
18.5
|
|
200-250（1）
|
280
400
520
|
77.8
111.4
114
|
22.2
20
14
|
75
80
72
|
1450
|
30
|
|
200-250（1）A
|
250
358
465
|
69.4
99.6
129.2
|
18
14
11.2
|
73
78
70
|
1450
|
22
|
|
200-250（1）B
|
226
322
419
|
62.8
89.4
116.4
|
14.4
13
7.3
|
70
75
67
|
1450
|
18.5
|
|
200-315（1）
|
280
400
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
|
200-315（1）A
|
262
374
486
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
|
200-315（1）B
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
|
1450
|
37
|
|
200-400（1）
|
280
400
520
|
77.8
111.4
144
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
|
200-400（1）A
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
|
14550
|
75
|
|
200-400（1）B
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
|
1450
|
55
|
|
200-400（1）C
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
|
1450
|
45
|
|
250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
|
250-250A
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
|
250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1450
|
22
|
|
250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
|
1450
|
37
|
|
250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
|
250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
|
250-315B
|
260
450
250
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
|
250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
|
1480
|
110
|
|
250-400A
|
262
450
521
|
72.7
125
144.7
|
46.6
44
38.3
|
69
|
1480
|
90
|
|
250-500
|
385
550
660
|
106.9
152.8
183.3
|
87
80
68
|
80
|
1480
|
160
|
|
250-500A
|
357
510
612
|
99.2
141.7
170
|
76.1
70
59.5
|
78
|
1480
|
132
|
|
250-500B
|
329
470
564
|
91.4
130.6
156.7
|
65.2
60
51
|
75
|
1480
|
110
|
|
300-235
|
540
720
900
|
150
200
250
|
20.5
18
15.0
|
77
81
74
|
1450
|
55
|
|
300-235A
|
450
600
720
|
125
166
200
|
17.2
15
12.5
|
74
79
77
|
1450
|
45
|
|
300-235B
|
420
540
650
|
116.7
150
181
|
14.3
12.8
10.5
|
73
78
70
|
1450
|
37
|
|
300-250
|
540
720
900
|
150
200
250
|
22.5
20
17
|
80
83
84
|
1450
|
55
|
|
300-250A
|
450
600
720
|
136
166
200
|
19.5
17
14
|
81
|
1450
|
45
|
|
300-300
|
540
720
900
|
150
200
250
|
32
28
23
|
82
|
1480
|
75
|
|
300-300A
|
450
600
720
|
125
166
200
|
27.5
24
20
|
80
|
1480
|
75
|
|
300-300B
|
420
540
650
|
116.7
150
181
|
24
21
17
|
78
|
1480
|
55
|
|
300-315
|
540
720
900
|
150
200
250
|
35
32
26
|
84
|
1480
|
90
|
|
300-315A
|
460
650
800
|
127.8
180
222
|
31.5
28
23.5
|
80
|
1480
|
75
|
|
300-315B
|
420
580
700
|
116.7
161
194
|
27
24
20.0
|
78
|
1480
|
55
|
|
300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
|
970
|
132
|
|
300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
|
970
|
110
|
|
300-380B
|
400
614
764
|
113.6
170.6
213.1
|
35
32
25
|
78
|
970
|
90
|
|
300-390
|
540
720
900
|
150
200
250
|
20.5
18
15.5
|
78
81
76
|
980
|
55
|
|
300-390A
|
450
600
720
|
126
167
200
|
17.2
15
12.8
|
77
79
75
|
980
|
45
|
|
300-390B
|
400
540
650
|
111
150
180
|
14
12.5
11.5
|
74
77
76
|
980
|
37
|
|
300-400
|
450
600
720
|
125
166
200
|
55
50
42.5
|
78
|
1480
|
110
|
|
300-480
|
540
720
900
|
150
200
250
|
31
28
24
|
79
81
80
|
980
|
75
|
|
300-480A
|
450
600
720
|
126
166
200
|
27.4
24
20.0
|
78
80
79
|
980
|
75
|
|
300--480B
|
400
540
650
|
111
150
180
|
24
21
17
|
79
|
980
|
55
|
|
300-315（1）
|
650
950
1200
|
180.6
263.9
333.3
|
36
32
28
|
82
|
1450
|
132
|
|
300-315（1）A
|
600
900
1150
|
166.7
250
320
|
32
28
24
|
80
|
1450
|
110
|
|
350-235
|
600
800
960
|
167
222
267
|
14
12.5
10.5
|
80
83
82
|
980
|
37
|
|
350-235（1）
|
800
1080
1350
|
222.2
300
375
|
20
16
12
|
80
83
82
|
980
|
75
|
|
350-300
|
600
800
960
|
167
222
267
|
22.5
20
17.5
|
79
82
71
|
980
|
75
|
|
350-315
|
600
800
960
|
167
222
267
|
35.5
32
28.5
|
84
|
980
|
90
|
|
350-400
|
600
800
960
|
167
222
267
|
55
50
45.5
|
83
|
980
|
160
|
|
400-300
|
920
1180
1300
|
255
328
361
|
23
19
16
|
78
|
980
|
90
|
|
400-315
|
950
1250
1500
|
264
347
416
|
32
28
24
|
76
|
980
|
132
|
|
500-235
|
1500
1800
2000
|
416
500
556
|
16
14
12
|
75
|
980
|
110
|
|
500-300
|
1400
1700
1900
|
388
472
528
|
22
20
18
|
80
|
980
|
132
|
|
500-315
|
1200
1550
1800
|
333
416
500
|
32
28
24
|
78
|
980
|
160
|
1、取压阀 2、排气阀 3、叶轮 4、机械密封 5、轴承
6、电机 7、联体座 8、泵盖 9、叶轮螺母 10、泵体 11、放水阀
YG型立式管道离心油泵性能参数
|
型号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
|
(m3/h)
|
(L/s)
|
|
15-80
|
1.1
1.5
2.0
|
0.30
0.42
0.55
|
8.5
8.0
7.0
|
26
34
34
|
2800
|
0.18
|
|
20-110
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
16.0
15.0
13.5
|
25
34
35
|
2800
|
0.37
|
|
20-125
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
21.0
20.0
18.6
|
28
35
34
|
2800
|
0.75
|
|
20-160
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
33
32
30
|
19
25
23
|
2900
|
1.5
|
|
25-110
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
16.0
15.0
13.5
|
34
42
41
|
2900
|
0.55
|
|
25-125
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
20.6
20.0
18.0
|
28
36
35
|
2900
|
0.75
|
|
25-125A
|
2.5
3.6
4.6
|
0.69
1.00
1.28
|
17.0
16.0
14.4
|
29
35
31
|
2900
|
0.75
|
|
25-160
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
33
32
30
|
24
32
33
|
2900
|
1.5
|
|
25-160A
|
2.6
3.7
4.9
|
0.12
1.03
1.36
|
29
28
26
|
27
31
29
|
2900
|
1.1
|
|
32-100
|
3.5
4.5
5.3
|
0.97
1.24
1.47
|
14.5
12.5
11
|
35
40
38
|
2900
|
0.55
|
|
30-125
|
3.5
5.0
6.5
|
0.97
1.39
1.80
|
22
20
18
|
40
44
42
|
2900
|
0.75
|
|
32-125A
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
17.6
16.0
14.4
|
39
43
40
|
2900
|
0.55
|
|
32-160
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33
32
30
|
40
44
42
|
2900
|
1.5
|
|
32-160A
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
27
25
21
|
31
34
32
|
2900
|
1.1
|
|
32-200
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
50.5
50.0
48.0
|
28
32
30
|
2900
|
3
|
|
32-200A
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
44.6
44
42.7
|
34
40
42
|
2900
|
2.2
|
|
32-160(1)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33.2
32
30.2
|
34
40
42
|
2900
|
2.2
|
|
32-200(1)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
50.5
50.0
48.0
|
26
33
35
|
2900
|
4
|
|
40-100
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.55
|
|
40-100A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10.0
9.0
|
48
52
50
|
2900
|
0.37
|
|
40-125
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
41
46
43
|
2900
|
1.1
|
|
40-125A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
40
45
41
|
2900
|
0.75
|
|
40-160
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
33
32
30
|
35
40
40
|
2900
|
2.2
|
|
40-160A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
29
28
26.3
|
34
39
39
|
2900
|
1.5
|
|
40-160B
|
3.8
5.5
7.2
|
1.06
1.53
2.0
|
25.5
24
22.5
|
34
38
37
|
2900
|
1.1
|
|
40-200
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
26
33
32
|
2900
|
4
|
|
40-200A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
45
44
42
|
26
31
32
|
2900
|
3
|
|
40-200B
|
3.7
5.3
7.0
|
1.03
1.47
1.94
|
38
36
34.5
|
25
29
27
|
2900
|
2.2
|
|
40-250
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
24
28
28
|
2900
|
7.5
|
|
40-250A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
24
28
27
|
2900
|
5.5
|
|
40-250B
|
3.8
5.5
7.0
|
1.06
1.53
1.94
|
61.5
60
56
|
23
27
26
|
2900
|
4
|
|
40-100(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.2
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
|
40-100(1)A
|
8.0
11.0
14.5
|
2.22
3.05
4.03
|
10.6
10.0
9.0
|
57
60
59
|
2900
|
0.75
|
|
40-125(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.2
20.0
17.8
|
49
58
57
|
2900
|
1.5
|
|
40-125(1)A
|
8.0
11.0
14.5
|
2.22
3.05
4.03
|
17.0
16.0
14.0
|
53
57
55
|
2900
|
1.1
|
|
40-160(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
|
40-160(1)A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
|
40-160(1)B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
|
40-200(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
51.2
50
48
|
38
46
46
|
2900
|
5.5
|
|
40-200(1)A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.0
44
42
|
37
45
45
|
2900
|
4
|
|
40-200(1)B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
|
40-250(1)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
81.2
80
77.5
|
31
38
40
|
2900
|
11
|
|
40-250(1)A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.0
70
68
|
38
|
2900
|
7.5
|
|
40-250(1)B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
5.5
|
|
40-250(1)C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
|
2900
|
5.5
|
|
50-100
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
|
50-100A
|
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
60
|
2900
|
0.75
|
|
50-125
|
8.8
12.5
16.3
|
2.44
3.74
4.53
|
21.5
20
17.8
|
49
58
57
|
2900
|
1.5
|
|
50-125A
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
|
2900
|
1.1
|
|
50-160
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
|
50-160A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
|
50-160B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
|
50-200
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900
|
5.5
|
|
50-200A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900
|
4
|
|
50-200B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
|
50-250
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900
|
11
|
|
50-250A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
38
|
2900
|
75
|
|
50-250B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
5.5
|
|
50-250C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
504
|
36
|
2900
|
5.5
|
|
50-100(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
|
50-100(1)A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
|
50-125(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
|
50-125(1)A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
13.6
|
58
66
65
|
2900
|
2.2
|
|
50-160(1)
|
17.5
25
32.5
|
4.68
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
|
50-160(1)A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
3
|
|
50-160(1)B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
28
|
2900
|
2.2
|
|
50-200(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
|
50-200(1)A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
5.5
|
|
50-200(1)B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
4
|
|
50-250(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
|
50-250(1)A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
|
50-250(1)B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
7.5
|
|
50-315(1)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
128
125
122
|
30
40
44
|
2900
|
30
|
|
50-315(1)A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
30
40
44
|
2900
|
22
|
|
50-315(1)B
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
|
50-315(1)C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
|
65-100
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
|
65-100A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
|
65-125
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
|
65-125A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
14.4
|
58
66
65
|
2900
|
2.2
|
|
65-160
|
17.5
25
32.5
|
4.86
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
|
65-160A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
3
|
|
65-160B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
|
2900
|
2.2
|
|
65-200
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
|
65-200A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
5.5
|
|
65-200B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
4
|
|
65-250
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
|
65-250A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
|
65-250B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
7.5
|
|
65-315
|
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
32
40
44
|
2900
|
30
|
|
65-315A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
32
40
44
|
2900
|
22
|
|
65-315B
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
|
65-315C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
|
65-100(1)
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
|
65-100(1)A
|
31.3
44.7
58
|
8.7
12.4
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
|
65-125(1)
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
|
65-125(1)A
|
31.5
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
|
65-160(1)
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
|
65-160(1)A
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
5.5
|
|
65-160(1)B
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
4
|
|
65-200(1)
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
|
65-200(1)A
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
|
65-200(1)B
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
|
65-250(1)
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
|
65-250(1)A
|
32.5
43.3
46.7
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
|
65-250(1)B
|
30
56
61
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
|
65-315(1)
|
35
50
65
|
9.72
13.9
18.1
|
128
125
121
|
44
54
57
|
2900
|
37
|
|
65-315(1)A
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
106.4
|
43
54
57
|
2900
|
30
|
|
65-315(1)B
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
|
65-315(1)C
|
29
41
53.6
|
8.1
11.4
14.9
|
87
85
83
|
51
|
2900
|
22
|
|
80-100
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
|
80-100A
|
31.3
44.7
58
|
8.7
12.5
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
|
80-125
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
|
80-125A
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
|
80-160
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
|
80-160A
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
5.5
|
|
80-160B
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
4
|
|
80-200
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
|
80-200A
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
|
80-200B
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
|
80-250
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
|
80-250A
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
|
80-250B
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
|
80-315
|
35
50
65
|
9.72
13.9
18.1
|
128
125
122
|
43
54
57
|
2900
|
37
|
|
80-315A
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
107.4
|
43
54
57
|
2900
|
30
|
|
80-315B
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
|
80-315C
|
29
41
53.6
|
8.1
11.4
14.9
|
98
85
83
|
51
|
2900
|
22
|
|
80-350
|
35
50
65
|
9.72
13.9
18.1
|
153.6
150
142
|
55
66
67
|
2900
|
55
|
|
80-350A
|
31
44.5
58
|
8.6
12.4
16.1
|
145.6
142
134.8
|
65
|
2900
|
45
|
|
80-350B
|
29
41
53.6
|
8.1
11.4
14.9
|
138.6
135
127.8
|
63
|
2900
|
37
|
|
80-100(1)
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
|
80-100(1)A
|
62.6
89
116
|
17.4
24.7
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
|
80-125(1)
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
|
80-125(1)A
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
65
|
2900
|
7.5
|
|
80-160(1)
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
|
80-160(1)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
|
80-160(1)B
|
60.6
86.6
112.6
|
16.8
24.1
31.3
|
26
24
18
|
72
|
2900
|
7.5
|
|
80-200(1)
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
|
80-200(1)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
67
73
72
|
2900
|
18.5
|
|
80-200(1)B
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
|
80-250(1)
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
|
80-250(1)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
|
80-250(1)B
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
22
|
|
80-315(1)
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
|
80-315（1）A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
55
66
67
|
2900
|
55
|
|
80-315（1）B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
|
80-315（1）C
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
|
100-100
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
|
100-100A
|
62.6
89
116
|
17.4
47
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
|
100-125
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
|
100-125A
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
63
|
2900
|
7.5
|
|
100-160
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
|
100-160A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
|
100-160B
|
60.6
86.6
112.5
|
16.8
24.1
31.3
|
27
24
18
|
72
|
2900
|
7.5
|
|
100-200
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
|
100-200A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
64
73
72
|
2900
|
18.5
|
|
100-200B
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
|
100-250
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
|
100-250A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
|
100-250B
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
22
|
|
100-315
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
|
100-315A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
65
66
67
|
2900
|
55
|
|
100-315B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
|
100-315C
|
58
82
107
|
16.1
27.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
|
100-350
|
60
100
120
|
16.7
27.8
33.3
|
153.6
150
142
|
72
57
74
|
2900
|
90
|
|
100-350A
|
61
87
113
|
16.9
24.2
31.4
|
145.6
142
134
|
75
|
2900
|
75
|
|
100-350B
|
58
82
107
|
16.1
22.8
29.7
|
138.6
135
127
|
75
|
2900
|
55
|
|
100-100(1)
|
96
160
192
|
26.7
44.4
53.3
|
14
12.5
10
|
64
73
70
|
2900
|
11
|
|
100-125(1)
|
96
160
192
|
26.7
44.4
53.3
|
24
20
14
|
62
74
69
|
2900
|
15
|
|
100-125(1)A
|
84
140
168
|
23.3
39
46.7
|
20
17
12
|
64
72
68
|
2900
|
11
|
|
100-160(1)
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
69
79
75
|
2900
|
22
|
|
100-160(1)A
|
84
140
168
|
23.3
39
46.7
|
32
28
23.5
|
66
76
72
|
2900
|
18.5
|
|
100-200(1)
|
96
160
192
|
26.7
44.4
53.3
|
53
50
45
|
69
79
78
|
2900
|
37
|
|
100-200(1)A
|
84
140
168
|
23.3
39
46.7
|
48
45
40
|
64
74
73
|
2900
|
30
|
|
100-200(1)B
|
60
100
120
|
16.7
27.8
33.3
|
43
40
36
|
72
|
2900
|
22
|
|
100-250(1)
|
96
160
192
|
26.7
44.4
53.3
|
83
80
72
|
65
77
74
|
2900
|
55
|
|
100-250(1)A
|
84
140
168
|
23.3
39
46.7
|
75
72
65
|
60
72
69
|
2900
|
45
|
|
100-250(1)B
|
60
100
120
|
16.7
27.8
33.3
|
68
65
58
|
70
|
2900
|
37
|
|
125-100
|
96
160
192
|
26.7
44.4
53.3
|
13
12.5
12
|
82
|
2900
|
11
|
|
125-100A
|
86
143
172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
77
|
2900
|
7.5
|
|
125-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
9.6
|
80
|
2900
|
15
|
|
125-125A
|
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
|
2900
|
11
|
|
125-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
78
|
2900
|
22
|
|
125-160A
|
90
150
180
|
25
41.7
50
|
31.5
28
24.5
|
76
|
2900
|
18.5
|
|
125-160B
|
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
73
|
2900
|
15
|
|
125-200
|
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
77
|
2900
|
37
|
|
125-200A
|
90
150
180
|
25
41.7
50
|
48.4
44
40.5
|
76
|
2900
|
30
|
|
125-200B
|
83
138
166
|
31.7
38.3
46.1
|
41.3
37.5
34.5
|
75
|
2900
|
22
|
|
125-250
|
96
160
192
|
26.7
4.4
53.3
|
87
80
73
|
75
|
2900
|
55
|
|
125-250A
|
90
150
180
|
25
41.7
50
|
84
76
70
|
74
|
2900
|
45
|
|
125-250B
|
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
73
|
2900
|
37
|
|
125-315
|
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
70
|
2900
|
90
|
|
125-315A
|
90
150
180
|
25
41.7
50
|
117
110
104.6
|
70
|
2900
|
75
|
|
125-315B
|
86
143
172
|
23.9
39.7
47.8
|
106.4
100
95.2
|
69
|
2900
|
75
|
|
125-315C
|
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
|
2900
|
55
|
|
150-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
66
76
76
|
2900
|
15
|
|
150-125A
|
90
150
180
|
25
41.7
50
|
18
16
13.6
|
77
|
2900
|
11
|
|
150-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
75
|
2900
|
22
|
|
150-160A
|
90
150
180
|
25
41.7
50
|
32
28
23.5
|
76
|
2900
|
18.5
|
|
150-160B
|
84
140
168
|
23.3
39
46.7
|
27
24
21
|
73
|
2900
|
15
|
|
150-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
|
150-200A
|
125
176
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
|
150-200B
|
110
160
207
|
31
44.4
57.6
|
9.2
8
6.8
|
75
|
1450
|
7.5
|
|
150-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
|
150-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
|
150-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
|
150-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
73
|
1450
|
30
|
|
150-315A
|
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
|
150-315B
|
121
173
225
|
33.5
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
|
150-350
|
96
160
192
|
26.7
44.4
53.3
|
153.6
150
142.8
|
80
|
2900
|
110
|
|
150-350A
|
90
150
180
|
25
41.7
50
|
145.6
142
134.8
|
70
|
2900
|
90
|
|
150-350B
|
84
140
168
|
23.3
39
46.7
|
138.6
135
127.8
|
65
76
74
|
2900
|
75
|
|
150-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
|
150-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
|
150-400B
|
122
174
226.5
|
33.9
48.3
62.9
|
40
38
33
|
73
|
1450
|
30
|
|
150-400C
|
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
|
150-250（1）
|
120
200
240
|
33.3
55.6
66.7
|
87
80
72
|
65
76
74
|
2900
|
75
|
|
150-250（1）A
|
112
187
224
|
31.1
51.9
62.2
|
76
70
63
|
64
75
73
|
2900
|
55
|
|
150-250（1）B
|
104
173
208
|
28.9
48.1
57.8
|
65
60
54
|
63
74
72
|
2900
|
45
|
|
150-315（1）
|
120
200
240
|
33.3
55.6
66.7
|
133
125
120
|
58
73
75
|
2900
|
110
|
|
150-315（10）A
|
112
187
224
|
31.1
51.9
62.2
|
116
110
105
|
57
72
74
|
2900
|
90
|
|
150-315（1）B
|
104
173
208
|
28.9
48.1
57.8
|
100
95
91
|
55
70
72
|
2900
|
75
|
|
200-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
|
200-200A
|
125
179
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
|
200-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
|
200-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
|
200-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
|
200-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
78
|
1450
|
30
|
|
200-315A
|
131
189
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
|
200-315B
|
121
173
225
|
33.6
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
|
200-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
|
200-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
|
200-400B
|
122
174
226.5
|
33.9
48.6
62.9
|
40
38
33
|
73
|
1450
|
30
|
|
200-400C
|
112
160
208
|
31.3
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
|
200-200（1）
|
280
400
520
|
77.8
111.1
114
|
13.4
12.5
10.5
|
70
80
79
|
1450
|
22
|
|
200-200（1）A
|
250
358
465
|
69.4
99.4
129.2
|
10.7
10
8.5
|
68
78
77
|
1450
|
18.5
|
|
200-250（1）
|
280
400
520
|
77.8
111.4
114
|
22.2
20
14
|
75
80
72
|
1450
|
30
|
|
200-250（1）A
|
250
358
465
|
69.4
99.6
129.2
|
18
14
11.2
|
73
78
70
|
1450
|
22
|
|
200-250（1）B
|
226
322
419
|
62.8
89.4
116.4
|
14.4
13
7.3
|
70
75
67
|
1450
|
18.5
|
|
200-315（1）
|
280
400
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
|
200-315（1）A
|
262
374
486
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
|
200-315（1）B
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
|
1450
|
37
|
|
200-400（1）
|
280
400
520
|
77.8
111.4
144
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
|
200-400（1）A
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
|
14550
|
75
|
|
200-400（1）B
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
|
1450
|
55
|
|
200-400（1）C
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
|
1450
|
45
|
|
250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
|
250-250A
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
|
250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1450
|
22
|
|
250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
|
1450
|
37
|
|
250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
|
250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
|
250-315B
|
260
450
250
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
|
250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
|
1480
|
110
|
|
250-400A
|
262
450
521
|
72.7
125
144.7
|
46.6
44
38.3
|
69
|
1480
|
90
|
|
250-500
|
385
550
660
|
106.9
152.8
183.3
|
87
80
68
|
80
|
1480
|
160
|
|
250-500A
|
357
510
612
|
99.2
141.7
170
|
76.1
70
59.5
|
78
|
1480
|
132
|
|
250-500B
|
329
470
564
|
91.4
130.6
156.7
|
65.2
60
51
|
75
|
1480
|
110
|
|
300-235
|
540
720
900
|
150
200
250
|
20.5
18
15.0
|
77
81
74
|
1450
|
55
|
|
300-235A
|
450
600
720
|
125
166
200
|
17.2
15
12.5
|
74
79
77
|
1450
|
45
|
|
300-235B
|
420
540
650
|
116.7
150
181
|
14.3
12.8
10.5
|
73
78
70
|
1450
|
37
|
|
300-250
|
540
720
900
|
150
200
250
|
22.5
20
17
|
80
83
84
|
1450
|
55
|
|
300-250A
|
450
600
720
|
136
166
200
|
19.5
17
14
|
81
|
1450
|
45
|
|
300-300
|
540
720
900
|
150
200
250
|
32
28
23
|
82
|
1480
|
75
|
|
300-300A
|
450
600
720
|
125
166
200
|
27.5
24
20
|
80
|
1480
|
75
|
|
300-300B
|
420
540
650
|
116.7
150
181
|
24
21
17
|
78
|
1480
|
55
|
|
300-315
|
540
720
900
|
150
200
250
|
35
32
26
|
84
|
1480
|
90
|
|
300-315A
|
460
650
800
|
127.8
180
222
|
31.5
28
23.5
|
80
|
1480
|
75
|
|
300-315B
|
420
580
700
|
116.7
161
194
|
27
24
20.0
|
78
|
1480
|
55
|
|
300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
|
970
|
132
|
|
300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
|
970
|
110
|
|
300-380B
|
400
614
764
|
113.6
170.6
213.1
|
35
32
25
|
78
|
970
|
90
|
|
300-390
|
540
720
900
|
150
200
250
|
20.5
18
15.5
|
78
81
76
|
980
|
55
|
|
300-390A
|
450
600
720
|
126
167
200
|
17.2
15
12.8
|
77
79
75
|
980
|
45
|
|
300-390B
|
400
540
650
|
111
150
180
|
14
12.5
11.5
|
74
77
76
|
980
|
37
|
|
300-400
|
450
600
720
|
125
166
200
|
55
50
42.5
|
78
|
1480
|
110
|
|
300-480
|
540
720
900
|
150
200
250
|
31
28
24
|
79
81
80
|
980
|
75
|
|
300-480A
|
450
600
720
|
126
166
200
|
27.4
24
20.0
|
78
80
79
|
980
|
75
|
|
300--480B
|
400
540
650
|
111
150
180
|
24
21
17
|
79
|
980
|
55
|
|
300-315（1）
|
650
950
1200
|
180.6
263.9
333.3
|
36
32
28
|
82
|
1450
|
132
|
|
300-315（1）A
|
600
900
1150
|
166.7
250
320
|
32
28
24
|
80
|
1450
|
110
|
|
350-235
|
600
800
960
|
167
222
267
|
14
12.5
10.5
|
80
83
82
|
980
|
37
|
|
350-235（1）
|
800
1080
1350
|
222.2
300
375
|
20
16
12
|
80
83
82
|
980
|
75
|
|
350-300
|
600
800
960
|
167
222
267
|
22.5
20
17.5
|
79
82
71
|
980
|
75
|
|
350-315
|
600
800
960
|
167
222
267
|
35.5
32
28.5
|
84
|
980
|
90
|
|
350-400
|
600
800
960
|
167
222
267
|
55
50
45.5
|
83
|
980
|
160
|
|
400-300
|
920
1180
1300
|
255
328
361
|
23
19
16
|
78
|
980
|
90
|
|
400-315
|
950
1250
1500
|
264
347
416
|
32
28
24
|
76
|
980
|
132
|
|
500-235
|
1500
1800
2000
|
416
500
556
|
16
14
12
|
75
|
980
|
110
|
|
500-300
|
1400
1700
1900
|
388
472
528
|
22
20
18
|
80
|
980
|
132
|
|
500-315
|
1200
1550
1800
|
333
416
500
|
32
28
24
|
78
|
980
|
160
|
