产品详细描述

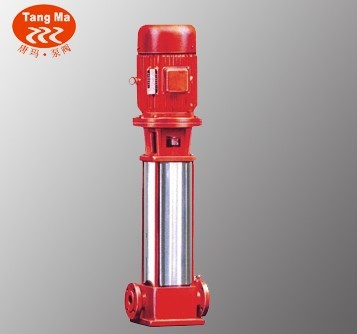

XBD-GDL立式多级管道消防泵是在原有立式多级泵基础上根据对消防泵的最新标准要求进行开发出的新一代XBD-GDL型中低压消防泵组产品。该系列泵在性能、结构、材料和配套上均满足消防泵的要求。由于采用优秀的水力模型,因此该系列消防泵具有满足用户要求;采用立式泵结构,具有效率高、性能范围广的特点,可更好地节省占地面积的优点:采用优质轴承和优质电机,使泵运行更为安全可靠、噪声低、振动小;采用水力平衡轴向力,减少平衡鼓,可使运行更为平稳。其轴封有机械密封和填料密封两种形式,该泵具有进出水法兰管线布置、转速高、重量轻等特点。
主要用途:
适用于各种场合如住宅、宾馆、办公大楼、商业大楼工厂、医院等处的消防给水。
|
型 号
|
流量Q
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
功率(Kw)
|
汽蚀
余量
(m)
|
进出
口径
(mm)
|
|
(L/s)
|
(m3/h)
|
轴功率
|
配套功率
|
|
XBD3.6/0.56-GDL25×3
|
2
|
0.56
|
36
|
30
|
2900
|
0.65
|
1.1
|
1.7
|
25
|
|
XBD4.8/0.56-GDL25×4
|
2
|
0.56
|
48
|
30
|
2900
|
0.87
|
1.1
|
1.7
|
25
|
|
XBD6/0.56-GDL25×5
|
2
|
0.56
|
60
|
30
|
2900
|
1.09
|
1.5
|
1.7
|
25
|
|
XBD7.2/0.56-GDL25×6
|
2
|
0.56
|
72
|
30
|
2900
|
1.30
|
1.5
|
1.7
|
25
|
|
XBD8.4/0.56-GDL25×7
|
2
|
0.56
|
84
|
30
|
2900
|
1.52
|
2.2
|
1.7
|
25
|
|
XBD9.6/0.56-GDL25×8
|
2
|
0.56
|
96
|
30
|
2900
|
0.74
|
2.2
|
1.7
|
25
|
|
XBD10.8/0.56-GDL25×9
|
2
|
0.56
|
108
|
30
|
2900
|
1.96
|
2.2
|
1.7
|
25
|
|
XBD120/0.56-GDL25×10
|
2
|
0.56
|
120
|
30
|
2900
|
2.17
|
3
|
1.7
|
25
|
|
XBD13.2/0.56-GDL254×11
|
2
|
0.56
|
132
|
30
|
2900
|
2.39
|
3
|
1.7
|
25
|
|
XBD14.0/0.56-GDL25×12
|
2
|
0.56
|
144
|
30
|
2900
|
2.61
|
3
|
1.7
|
25
|
|
XBD3.3/1.11-GDL25×3
|
4
|
1.11
|
33
|
40
|
2900
|
0.90
|
1.1
|
1.7
|
25
|
|
XBD4.4/1.11-GDL25×4
|
4
|
1.11
|
44
|
40
|
2900
|
1.20
|
1.5
|
1.7
|
25
|
|
XBD6.6/1.11-GDL25×6
|
4
|
1.11
|
66
|
40
|
2900
|
1.80
|
2.2
|
1.7
|
25
|
|
XBD7.7/1.11-GDL25×7
|
4
|
1.11
|
77
|
40
|
2900
|
2.10
|
2.2
|
1.7
|
25
|
|
XBD8.8/1.11-GDL25×8
|
4
|
1.11
|
88
|
40
|
2900
|
2.40
|
3
|
1.7
|
25
|
|
XBD9.9/1.11-GDL25×9
|
4
|
1.11
|
99
|
40
|
2900
|
2.70
|
3
|
1.7
|
25
|
|
XBD11/1.11-GDL25×10
|
4
|
1.11
|
110
|
40
|
2900
|
3.00
|
4
|
1.7
|
25
|
|
XBD12.1/1.11-GDL25×11
|
4
|
1.11
|
121
|
40
|
2900
|
3.30
|
4
|
1.7
|
25
|
|
XBD13.2/1.11-GDL25×12
|
4
|
1.11
|
132
|
40
|
2900
|
3.60
|
4
|
1.7
|
25
|
|
XBD14.3/1.11-GDL25×13
|
4
|
1.11
|
143
|
40
|
2900
|
3.90
|
4
|
1.7
|
25
|
|
XBD3.6/1.67-GDL40×3
|
6
|
1.67
|
36
|
52
|
2900
|
1.13
|
1.5
|
1.7
|
40
|
|
XBD4.8/1.67-GDL40×4
|
6
|
1.67
|
48
|
52
|
2900
|
1.5
|
2.2
|
1.7
|
40
|
|
XBD6/1.67-GDL40×5
|
6
|
1.67
|
60
|
52
|
2900
|
1.88
|
2.2
|
1.7
|
40
|
|
XBD7.2/1.67-GDL40×6
|
6
|
1.67
|
72
|
52
|
2900
|
2.26
|
3
|
1.7
|
40
|
|
XBD8.7/1.67-GDL40×7
|
6
|
1.67
|
84
|
52
|
2900
|
2.64
|
3
|
1.7
|
40
|
|
XBD9.6/1.67-GDL40×8
|
6
|
1.67
|
96
|
52
|
2900
|
3.01
|
4
|
1.7
|
40
|
|
XBD10.8/1.67-GDL40×9
|
6
|
1.67
|
108
|
52
|
2900
|
3.39
|
4
|
1.7
|
40
|
|
XBD12/1.67-GDL40×10
|
6
|
1.67
|
120
|
52
|
2900
|
3.77
|
4
|
1.7
|
40
|
|
XBD13.2/1.67-GDL40×11
|
6
|
1.67
|
132
|
52
|
2900
|
4.15
|
5.5
|
1.7
|
40
|
|
XBD14.4/1.67-GDL40×12
|
6
|
1.67
|
144
|
52
|
2900
|
4.52
|
5.5
|
1.7
|
40
|
|
XBD3/33.3-GDL50×2
|
12
|
3.33
|
30
|
56
|
2900
|
1.75
|
2.2
|
1.8
|
50
|
|
XBD4.5/3.33-GDL50×3
|
12
|
3.33
|
45
|
56
|
2900
|
2.63
|
3
|
1.8
|
50
|
|
XBD6.0/3.33-GDL50×4
|
12
|
3.33
|
60
|
56
|
2900
|
3.6
|
4
|
1.8
|
50
|
|
XBD7.5/3.33-GDL50×5
|
12
|
3.33
|
75
|
56
|
2900
|
4.27
|
5.5
|
1.8
|
50
|
|
XBD9/3.33-GDL50×6
|
12
|
3.33
|
90
|
56
|
2900
|
5.25
|
5.5
|
1.8
|
50
|
|
XBD10/3.33-GDL50×7
|
12
|
3.33
|
105
|
56
|
2900
|
6.2
|
7.5
|
1.8
|
50
|
|
XBD12/3.33-GDL50×8
|
12
|
3.33
|
120
|
56
|
2900
|
7.0
|
7.5
|
1.8
|
50
|
|
XBD13.5/3.3-GDL50×9
|
12
|
3.33
|
135
|
56
|
2900
|
7.87
|
11
|
1.8
|
50
|
|
XBD15/3.33-GDL50×10
|
12
|
3.33
|
150
|
56
|
2900
|
8.75
|
11
|
1.8
|
50
|
|
XBD3/5-GDL50×2
|
18
|
5
|
30
|
62
|
2900
|
2.37
|
3
|
1.8
|
50
|
|
XBD4.5/5-GDL50×3
|
18
|
5
|
45
|
62
|
2900
|
3.56
|
4
|
1.8
|
50
|
|
XBD6/5-GDL50×4
|
18
|
5
|
60
|
62
|
2900
|
4.75
|
5.35
|
1.8
|
50
|
|
XBD7.5/5-GDL50×5
|
18
|
5
|
75
|
62
|
2900
|
5.93
|
7.5
|
1.8
|
50
|
|
XBD9/5-GDL50×6
|
18
|
5
|
90
|
62
|
2900
|
7.12
|
7.5
|
1.8
|
50
|
|
XBD10.5/5-GDL50×7
|
18
|
5
|
105.5
|
62
|
2900
|
8.30
|
11
|
1.8
|
50
|
|
XBD12/5-GDL50×8
|
18
|
5
|
120
|
62
|
2900
|
9.49
|
11
|
1.8
|
50
|
|
XBD13.5/5-GDL50×9
|
18
|
5
|
135
|
62
|
2900
|
10.68
|
11
|
1.8
|
50
|
|
XBD15/5-GDL50×10
|
18
|
5
|
150
|
62
|
2900
|
11.87
|
15
|
1.8
|
50
|
|
XBD2.4/10-GDL80×2
|
36
|
10
|
24
|
68
|
2900
|
3.46
|
4
|
4
|
80
|
|
XBD3.6/10-GDL80×3
|
36
|
10
|
36
|
68
|
2900
|
5.19
|
5.5
|
4
|
80
|
|
XBD4.8/10-GDL80×4
|
36
|
10
|
48
|
68
|
2900
|
6.92
|
7.5
|
4
|
80
|
|
XBD6/10-GDL80×5
|
36
|
10
|
60
|
68
|
2900
|
8.67
|
11
|
4
|
80
|
|
XBD7.2/10-GDL80×6
|
36
|
10
|
72
|
68
|
2900
|
10.39
|
11
|
4
|
80
|
|
XBD8.4/10-GDL80×7
|
36
|
10
|
84
|
68
|
2900
|
12.12
|
15
|
4
|
80
|
|
XBD9.6/10-GDL80×8
|
36
|
10
|
96
|
68
|
2900
|
13.85
|
15
|
4
|
80
|
|
XBD10.8/10-GDL80×9
|
36
|
10
|
108
|
68
|
2900
|
15.59
|
18.5
|
4
|
80
|
|
XBD12/10-GDL80×10
|
36
|
10
|
120
|
68
|
2900
|
17.31
|
18.5
|
4
|
80
|
|
XBD2.8/15-GDL80×2
|
54
|
15
|
28
|
70
|
2900
|
5.88
|
7.5
|
4
|
80
|
|
XBD4.2/15-GDL80×3
|
54
|
15
|
42
|
70
|
2900
|
8.82
|
11
|
4
|
80
|
|
XBD5.6/15-GDL80×4
|
54
|
15
|
56
|
70
|
2900
|
11.76
|
15
|
4
|
80
|
|
XBD7/15-GDL80×5
|
54
|
15
|
70
|
70
|
2900
|
14.7
|
18.5
|
4
|
80
|
|
XBD8.4/15-GDL80×6
|
54
|
15
|
84
|
70
|
2900
|
17.64
|
18.5
|
4
|
80
|
|
XBD9.8/15-GDL80×7
|
54
|
15
|
98
|
70
|
2900
|
20.58
|
22
|
4
|
80
|
|
XBD11.2/15-GDL80×8
|
54
|
15
|
112
|
70
|
2900
|
23.54
|
30
|
4
|
80
|
|
XBD12.6/15-GDL80×9
|
54
|
15
|
126
|
70
|
2900
|
26.49
|
30
|
4
|
80
|
|
XBD14/15-GDL80×10
|
54
|
15
|
140
|
70
|
2900
|
29.43
|
37
|
4
|
80
|
|
XBD2.8/20-GDL100×2
|
72
|
20
|
28
|
73
|
2900
|
7.53
|
11
|
4.5
|
100
|
|
XBD4.2/20-GDL100×3
|
72
|
20
|
42
|
73
|
2900
|
10.29
|
15
|
4.5
|
100
|
|
XBD5.6/20-GDL100×4
|
72
|
20
|
56
|
73
|
2900
|
15.05
|
18.5
|
4.5
|
100
|
|
XBD7/20-GDL100×5
|
72
|
20
|
70
|
73
|
2900
|
18.81
|
22
|
4.5
|
100
|
|
XBD8.4/20-GDL100×6
|
72
|
20
|
84
|
73
|
2900
|
22.57
|
30
|
4.5
|
100
|
|
XBD9.8/20-GDL100×7
|
72
|
20
|
98
|
73
|
2900
|
26.34
|
30
|
4.5
|
100
|
|
XBD11.2/20-GDL100×8
|
72
|
20
|
112
|
73
|
2900
|
30.1
|
37
|
4.5
|
100
|
|
XBD12.6/20-GDL100×9
|
72
|
20
|
125
|
73
|
2900
|
33.9
|
37
|
4.5
|
100
|
|
XBD14/20-GDL100×10
|
72
|
20
|
140
|
73
|
2900
|
37.6
|
45
|
4.5
|
100
|
|
XBD4.2/25-GDL125×2
|
90
|
25
|
42
|
73
|
2900
|
14.1<, /TD>
|
18.5
|
4.3
|
125
|
|
XBD6.3/25-GDL125×3
|
90
|
25
|
63
|
73
|
2900
|
21.2
|
30
|
4.3
|
125
|
|
XBD8.4/25-GDL125×4
|
90
|
25
|
84
|
73
|
2900
|
28.2
|
37
|
4.3
|
125
|
|
XBD10.5/25-GDL125×5
|
90
|
25
|
108
|
73
|
2900
|
35.3
|
45
|
4.3
|
125
|
|
XBD12.6/25-GDL125×6
|
90
|
25
|
126
|
73
|
2900
|
40.3
|
55
|
4.3
|
125
|
|
XBD14.7/25-GDL125×7
|
90
|
25
|
147
|
73
|
2900
|
40.4
|
55
|
4.3
|
125
|
|
XBD16.8/25-GDL125×8
|
90
|
25
|
168
|
73
|
2900
|
56.4
|
75
|
4.3
|
125
|
|
XBD18.9/25-GDL125×9
|
90
|
25
|
189
|
73
|
2900
|
63.5
|
75
|
4.3
|
125
|
|
XBD21/25-GDL125×10
|
90
|
25
|
210
|
73
|
2900
|
70.6
|
90
|
4.3
|
125
|
|
XBD3.8/30-GDL125×2
|
108
|
30
|
38
|
74
|
2900
|
15.1
|
18.5
|
4.6
|
125
|
|
XBD5.7/30-GDL125×3
|
108
|
30
|
57
|
74
|
2900
|
22.7
|
30
|
4.6
|
125
|
|
XBD7.6/30-GDL125×4
|
108
|
30
|
76
|
74
|
2900
|
30.2
|
37
|
4.6
|
125
|
|
XBD9.5/30-GDL125×5
|
108
|
30
|
95
|
74
|
2900
|
37.8
|
45
|
4.6
|
125
|
|
XBD11.4/60-GDL125×6
|
108
|
30
|
114
|
74
|
2900
|
45.3
|
55
|
4.6
|
125
|
|
XBD13.3/30-GDL125×7
|
108
|
30
|
133
|
74
|
2900
|
52.9
|
55
|
4.6
|
125
|
|
XBD15.2/30-GDL125×8
|
108
|
30
|
152
|
74
|
2900
|
60.5
|
75
|
4.6
|
125
|
|
XBD17.1/30-GDL125×9
|
108
|
30
|
171
|
74
|
2900
|
68.0
|
75
|
4.6
|
125
|
|
XBD19/30-GDL125×10
|
108
|
30
|
160
|
74
|
2900
|
75.6
|
90
|
4.6
|
125
|
|
XBD4.3/35-GDL150×2
|
126
|
35
|
43
|
72
|
2900
|
20.5
|
30
|
4.4
|
150
|
|
XBD6.5/35-GDL150×3
|
126
|
,
35
|
65
|
72
|
2900
|
30.7
|
37
|
4.4
|
150
|
|
XBD8.7/35-GDL150×4
|
126
|
35
|
87
|
72
|
2900
|
40.9
|
45
|
4.4
|
150
|
|
XBD10.9/35-GDL150×5
|
126
|
35
|
109
|
72
|
2900
|
51.2
|
75
|
4.4
|
150
|
|
XBD13.0/35-GDL150×6
|
126
|
35
|
130
|
72
|
2900
|
61.4
|
75
|
4.4
|
150
|
|
XBD15.2/35-GDL150×7
|
126
|
35
|
152
|
72
|
2900
|
71.6
|
90
|
4.4
|
150
|
|
XBD17.4/35-GDL150×8
|
126
|
35
|
174
|
72
|
2900
|
81.9
|
90
|
4.4
|
150
|
|
XBD19.6/35-GDL150×9
|
126
|
35
|
196
|
72
|
2900
|
92.1
|
110
|
4.4
|
150
|
|
XBD21.8/35-GDL150×10
|
126
|
35
|
218
|
72
|
2900
|
102.4
|
132
|
4.4
|
150
|
|
XBD4.1/40-GDL150×2
|
144
|
40
|
42
|
76
|
2900
|
21.2
|
30
|
4.4
|
150
|
|
XBD6.2/40-GDL150×3
|
144
|
40
|
62
|
76
|
2900
|
32.0
|
37
|
4.4
|
150
|
|
XBD8.6/40-GDL150×4
|
144
|
40
|
86
|
76
|
2900
|
42.7
|
55
|
4.4
|
150
|
|
XBD10.4/40-GDL150×5
|
144
|
40
|
104
|
76
|
2900
|
53.4
|
75
|
4.4
|
150
|
|
XBD12.4/40-GDL150×6
|
144
|
40
|
124
|
76
|
2900
|
64.0
|
75
|
4.4
|
150
|
|
XBD14.5/40-GDL150×7
|
144
|
40
|
145
|
76
|
2900
|
74.7
|
90
|
4.4
|
150
|
|
XBD16.6/40-GDL150×8
|
144
|
40
|
166
|
76
|
2900
|
85.4
|
110
|
4.4
|
150
|
|
XBD18.7/40-GDL150×9
|
144
|
40
|
187
|
76
|
2900
|
96.0
|
110
|
4.4
|
150
|
|
XBD20.7/40-GDL150×10
|
144
|
40
|
207
|
76
|
2900
|
107.1
|
132
|
4.4
|
150
|
|
XBD4/45-GDL150×2
|
162
|
45
|
40
|
78
|
2900
|
22.6
|
30
|
4.5
|
150
|
|
XBD6/45-GDL150×3
|
162
|
45
|
60
|
78
|
2900
|
34.0
|
37
|
4.5
|
150
|
|
XBD8/45-GDL150×4
|
162
|
45
|
80
|
78
|
2900
|
45.3
|
55
|
4.5
|
150
|
|
XBD10/45-GDL150×5
|
162
|
45
|
100
|
78
|
2900
|
56.6
|
75
|
4.5
|
150
|
|
XBD12/45-GDL150×6
|
162
|
45
|
120
|
78
|
2900
|
67.9
|
75
|
4.5
|
150
|
|
XBD14/45-GDL150×7
|
162
|
45
|
140
|
78
|
2900
|
79.2
|
90
|
4.5
|
150
|
|
XBD16/45-GDL150×8
|
162
|
45
|
160
|
78
|
2900
|
90.6
|
110
|
4.5
|
150
|
|
XBD18/45-GDL150×9
|
162
|
45
|
180
|
78
|
2900
|
101.9
|
110
|
4.5
|
150
|
|
XBD20/45-GDL150×10
|
162
|
45
|
200
|
78
|
2900
|
113.2
|
132
|
4.5
|
150
|
|
|
|
