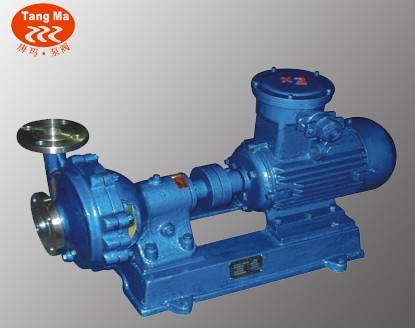

FB、AFB不锈钢耐腐蚀离心泵产品概述
FB型泵适用于不含有固体颗粒介质,介质温度为O℃～120℃,进口压力不大于2kg/cm2。
AFB型不锈钢耐腐蚀离心泵是在F型耐腐蚀泵的基础上改进设计的,均采用新型的付叶轮动力轴封装置,属单级单吸悬臂式耐腐蚀离心泵。
该泵与输送介质接触的过流部份零件,均采用1Cr18Ni9Ti材料制造。用于输送不含固体颗粒,有腐蚀性液体,被输送介质温度为-20℃～130℃,泵进口压力不大于2kg/cm2。
该泵广泛应用于化工、石油、冶金、轻工、合成纤维、环保、食品、医药等部门。该类产品具有性能稳定可靠、密封性能好,造型美观,使用检修方便等优点。为提高产品质量、减少跑、冒、滴、漏,防止污染,改善环境,发挥很大的作用。
FB、AFB不锈钢耐腐蚀离心泵型号意义
FB、AFB不锈钢耐腐蚀离心泵结构图
FB、AFB不锈钢耐腐蚀离心泵性能参数
|
型 号
|
流量Q
|
扬程H (m)
|
转速n(r/min)
|
效率
(%)
|
轴功率(Kw)
|
配用功率(Kw)
|
汽蚀余量(m)
|
|
(m3/h)
|
(L/s)
|
|
25FB-16
|
3.6
|
1
|
16
|
2900
|
33
|
0.48
|
1.1
|
4.0
|
|
25FB-16A
|
3.27
|
0.91
|
12.5
|
2900
|
34
|
0.34
|
0.75
|
4.0
|
|
25FB-25
|
3.6
|
1
|
25
|
2900
|
30
|
0.82
|
1.5
|
4.0
|
|
25FB-25A
|
3.27
|
0.91
|
40
|
2900
|
31
|
0.57
|
1.1
|
4.0
|
|
25FB-40
|
3.6
|
1
|
40
|
2900
|
23
|
1.71
|
3
|
4.0
|
|
25FB-40
|
3.27
|
0.91
|
33.5
|
2900
|
24
|
1.21
|
2.2
|
4.0
|
|
40FB-16
|
7.2
|
2
|
16
|
2900
|
44
|
0.71
|
1.5
|
4.0
|
|
40FB-16A
|
6.55
|
1.82
|
12
|
2900
|
46.7
|
0.5
|
1.1
|
4.0
|
|
40FB-20
|
7.2
|
2
|
20
|
2900
|
42
|
0.93
|
1.5
|
4.0
|
|
40FB-25
|
7.2
|
2
|
25
|
2900
|
39
|
1.26
|
2.2
|
4.0
|
|
40FB-25A
|
6.55
|
1.82
|
20.5
|
2900
|
40
|
0.94
|
1.5
|
4.0
|
|
40FB-40
|
7.2
|
2
|
40
|
2900
|
32
|
2.45
|
3
|
4.0
|
|
40FB-40A
|
6.55
|
1.82
|
32
|
2900
|
33.5
|
1.73
|
2.2
|
4.0
|
|
40FB-63
|
7.2
|
2
|
63
|
2900
|
27
|
5.42
|
7.5
|
4.0
|
|
40FB-63A
|
6.72
|
1.87
|
56
|
2900
|
29
|
3.75
|
5.5
|
4.0
|
|
50FB-16
|
14.4
|
4
|
16
|
2900
|
56
|
1.09
|
2.2
|
3.5
|
|
50FB-16A
|
13.1
|
3.64
|
12
|
2900
|
57
|
0.81
|
1.5
|
3.5
|
|
50FB-25
|
14.4
|
4
|
25
|
2900
|
52
|
1.83
|
4
|
3.5
|
|
50FB-25A
|
13.1
|
3.64
|
20
|
2900
|
51.5
|
1.42
|
3
|
3.5
|
|
50FB-40
|
14.4
|
4
|
40
|
2900
|
46
|
3.32
|
5.5
|
3.5
|
|
50FB-40A
|
13.1
|
3.64
|
32.5
|
2900
|
45
|
2.62
|
5.5
|
3.5
|
|
50FB-63
|
14.4
|
4
|
63
|
2900
|
39
|
6.16
|
11
|
3.5
|
|
50FB-63A
|
13.1
|
3.64
|
54.5
|
2900
|
38
|
5.24
|
7.5
|
3.5
|
|
65FB-25
|
28.8
|
8
|
25
|
2900
|
62
|
3.16
|
5.5
|
3.5
|
|
65FB-25A
|
26.2
|
7.28
|
20
|
2900
|
62
|
2.36
|
4
|
3.5
|
|
65FB-30
|
28.8
|
8
|
30
|
2900
|
60.5
|
3.89
|
7.5
|
3.5
|
|
65FB-30A
|
26.2
|
7.28
|
25
|
2900
|
61
|
2.79
|
5.5
|
3.5
|
|
65FB-40
|
28.8
|
8
|
40
|
2900
|
57.5
|
5.46
|
11.5
|
3.5
|
|
65FB-40A
|
26.2
|
7.28
|
32
|
2900
|
58
|
4
|
7.5
|
3.5
|
|
65FB-64
|
28.8
|
8
|
64
|
2900
|
52.5
|
9.57
|
15
|
3.5
|
|
65FB-64A
|
26.2
|
7.28
|
55
|
2900
|
51.5
|
7.82
|
7.5
|
3.5
|
|
80FB-15
|
54.4
|
15
|
15
|
2900
|
69
|
3.2
|
5.5
|
3.0
|
|
80FB-15A
|
49.1
|
13.65
|
11.5
|
2900
|
69
|
2.62
|
4
|
3.0
|
|
80FB-24
|
54.4
|
15
|
24
|
2900
|
68
|
5.19
|
7.5
|
3.0
|
|
80FB-24A
|
49.1
|
13.65
|
19
|
2900
|
68
|
3.94
|
7.5
|
3.0
|
|
80FB-38
|
54.4
|
15
|
38
|
2900
|
66.5
|
8.41
|
15
|
3.0
|
|
80FB-38A
|
49.1
|
13.65
|
30.5
|
2900
|
66.5
|
6.34
|
11
|
3.0
|
|
80FB-60
|
54.4
|
15
|
60
|
2900
|
62.8
|
14.06
|
22
|
3.0
|
|
80FB-60A
|
49.1
|
13.65
|
52
|
2900
|
62.5
|
11.56
|
18.5
|
3.0
|
|
100FB-23
|
100.8
|
28
|
23
|
2900
|
73
|
8.65
|
15
|
3.0
|
|
100FB-23A
|
91.8
|
25.5
|
17.5
|
2900
|
73
|
6.51
|
11
|
3.0
|
|
100FB-37
|
100.8
|
28
|
37
|
2900
|
73
|
13.9
|
22
|
3.0
|
|
100FB-37A
|
91.8
|
25.5
|
29
|
2900
|
70.5
|
11
|
18.5
|
3.0
|
|
100FB-57
|
100.8
|
28
|
57
|
2900
|
70.5
|
22.2
|
37
|
3.0
|
|
100FB-57A
|
91.8
|
25.5
|
52
|
2900
|
70.5
|
18.77
|
37
|
3.0
|
|
150FB-22
|
190.8
|
53
|
22
|
2900
|
77
|
14.86
|
22
|
2.5
|
|
150FB-22A
|
173.5
|
48.2
|
17.5
|
2900
|
78
|
10.6
|
18.5
|
2.5
|
|
150FB-35
|
190.8
|
53
|
35
|
2900
|
76
|
13.94
|
37
|
2.5
|
|
150FB-35A
|
173.5
|
48.2
|
28
|
2900
|
76
|
17.42
|
30
|
2.5
|
|
150FB-56
|
190.8
|
53
|
56
|
2900
|
76
|
38.3
|
55
|
2.5
|
|
150FB-56A
|
173.5
|
48.2
|
50
|
2900
|
76
|
32.1
|
37
|
2.5
|
广泛应用于化工、石油、冶金、轻工、合成纤维、环保、食品、医药等部门。
