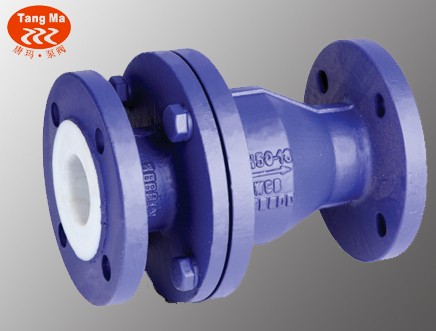

H44F46旋启式衬氟止回阀概述
H44F46旋启式衬氟止回阀是一种依靠介质本身的流动而自动启闭阀瓣用来阻止介质逆向流动的自动阀门。
本公司衬里止回阀基本类型有四种：H41F46升降式衬氟止回阀、H42F46型立式衬氟止回阀、H44F46旋启式衬氟止回阀、H76F46对夹式衬氟止回阀。
H44F46旋启式衬氟止回阀主要零部件材料表
|
序号
|
零件名称
|
灰铸铁
|
铸钢
|
不锈耐酸铸钢
|
超低碳不锈耐酸铸钢
|
|
Z
|
C
|
P
|
R
|
PL
|
RL
|
|
1
|
阀体/阀盖
|
HT250
|
WCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
2
|
阀瓣/阀杆
|
35
|
1Cr13
|
1Cr18Ni9
|
1Cr18Ni12Mo2Ti
|
00Cr18Ni10
|
00Cr17Ni14Mo2
|
|
3
|
衬里/阀座
|
PCTEF(F3),FEP(F46),PFA(可溶F4),PP,PO
|
|
4
|
紧固螺栓
|
WCB
|
1Cr17Ni2
|
1Cr18Ni9Ti
|
|
5
|
螺母
|
PTFE(F4)
|
CF8
|
CF8
|

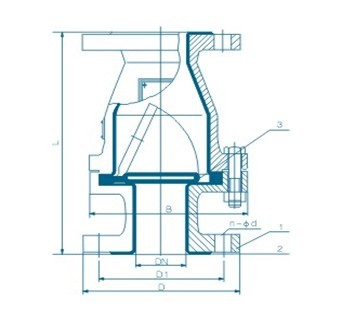

H44F46旋启式衬氟止回阀主要外形和连接尺寸
|
公称通经
|
L
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
|
DN(mm)
|
NPS(inch)
|
PN1.0MPa
|
PN1.6MPa
|
|
15
|
1/2
|
130
|
95
|
65
|
45
|
2
|
14
|
4-φ14
|
130
|
95
|
65
|
2
|
14
|
4-φ14
|
|
20
|
3/4
|
150
|
105
|
75
|
55
|
2
|
16
|
4-φ14
|
150
|
105
|
75
|
2
|
16
|
4-φ14
|
|
25
|
1
|
160
|
115
|
85
|
65
|
2
|
16
|
4-φ14
|
160
|
115
|
85
|
2
|
16
|
4-φ14
|
|
32
|
5/4
|
180
|
135
|
100
|
78
|
2
|
18
|
4-φ18
|
180
|
135
|
100
|
2
|
18
|
4-φ18
|
|
40
|
3/2
|
200
|
145
|
110
|
85
|
3
|
18
|
4-φ18
|
200
|
145
|
110
|
3
|
18
|
4-φ18
|
|
50
|
2
|
230
|
160
|
125
|
100
|
3
|
20
|
4-φ18
|
230
|
160
|
125
|
3
|
20
|
4-φ18
|
|
65
|
5/2
|
290
|
180
|
145
|
120
|
3
|
20
|
4-φ18
|
290
|
180
|
145
|
3
|
20
|
4-φ18
|
|
80
|
3
|
310
|
195
|
160
|
135
|
3
|
22
|
4-φ18
|
310
|
195
|
160
|
3
|
22
|
4-φ18
|
|
100
|
4
|
350
|
215
|
180
|
155
|
3
|
22
|
8-φ18
|
350
|
215
|
180
|
3
|
24
|
8-φ18
|
|
125
|
5
|
400
|
245
|
210
|
185
|
3
|
24
|
8-φ18
|
400
|
245
|
210
|
3
|
26
|
8-φ18
|
|
150
|
6
|
480
|
280
|
240
|
210
|
3
|
24
|
8-φ23
|
480
|
280
|
240
|
3
|
28
|
8-φ23
|
|
200
|
8
|
600
|
335
|
295
|
265
|
3
|
26
|
8-φ23
|
495
|
335
|
295
|
3
|
30
|
12-φ23
|
|
250
|
10
|
622
|
390
|
350
|
320
|
3
|
28
|
12-φ23
|
622
|
405
|
355
|
3
|
32
|
12-φ25
|
|
300
|
12
|
698
|
440
|
400
|
368
|
4
|
28
|
12-φ23
|
698
|
460
|
410
|
4
|
34
|
12-φ25
|
|
350
|
14
|
787
|
500
|
460
|
428
|
4
|
30
|
16-φ23
|
787
|
520
|
470
|
4
|
38
|
16-φ25
|
|
400
|
16
|
914
|
565
|
515
|
482
|
4
|
32
|
16-φ25
|
914
|
580
|
525
|
4
|
40
|
16-φ30
|
